For maps evaluation purposes, a complete basic address in Malaysia should include:
[Street Number] [Street Name], [Sub-location], [Postal Code] [Locality], [State], [Country]
e.g. 2, Jalan PJU 7/2, Mutiara Damansara, 47800 Petaling Jaya, Selangor, Malaysia
Administrative divisions are excluded from the required address components with some exceptions which will be further elaborated in this document.
Addresses should be verified via national postal authority or official websites. This document will detail the rating rules specifically for Malaysia.

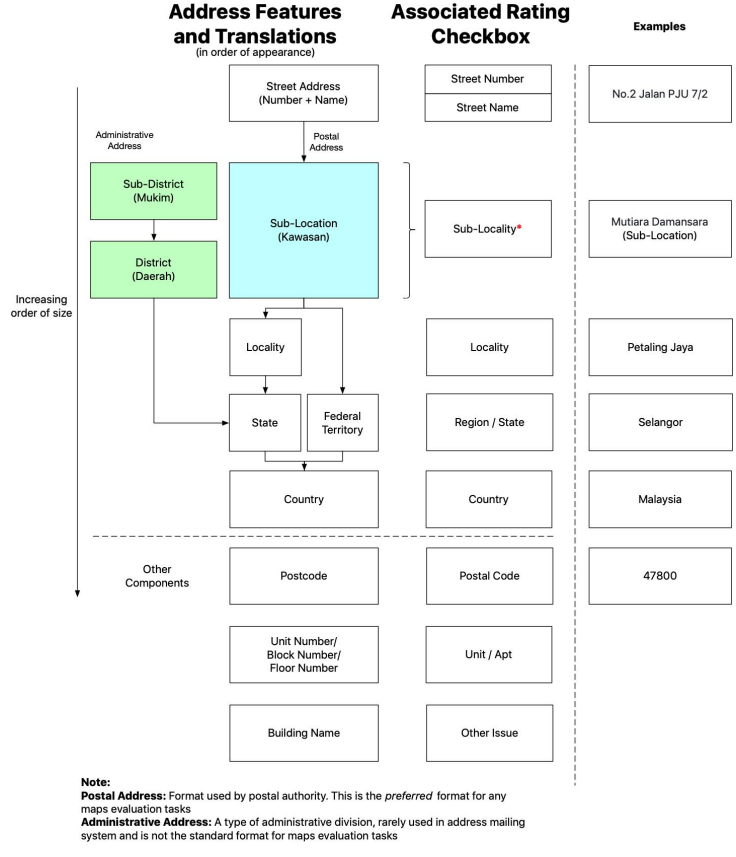

The chart below illustrates the general relation between address components in Malaysia, as well as the associated checkbox in the rating interface.
Examples
“Locality” in Malaysian context refers to the locality division as specified by postal authority. We also call this “Postal City”.
*Use Sub-Locality Checkbox when present to report issues regarding “Sub-District”, “District”, and “SubLocation“. If checkbox is not present, continue using “Country Specific Issue”.

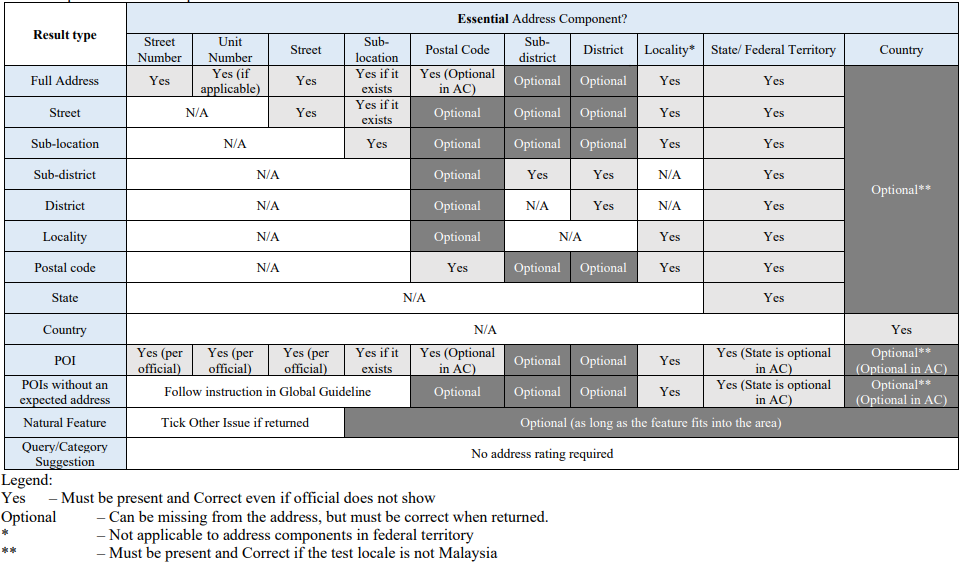

The table below outlines the required (and optional) address components for general result types. The rule applies to all Maps Evaluation tasks with some exceptions to Autocomplete.
Legend:
Yes – Must be present and Correct even if official does not show
Result Type | Search | Autocomplete | Legend |
POI Address | No. 2, Jalan PJU 7/2, Mutiara Damansara 47800 Petaling Jaya, Selangor | No. 2, Jalan PJU 7/2, Mutiara Damansara, Petaling Jaya | Street number Street name Sub-location Sub-district District Postal code Locality State/Federal Territory Country |
Full Address | No. 2, Jalan PJU 7/2, Mutiara Damansara, Petaling Jaya, Selangor | ||
Transit POI | Petaling Jaya, Selangor | Petaling Jaya | |
Street | Jalan Perubatan 1, Pandan Indah, Kuala Lumpur | ||
Sub-location | Bandar Sunway, Subang Jaya, Selangor | ||
Sub-district | Mukim Batu, Daerah Gombak, Selangor | ||
District | Daerah Petaling, Selangor | ||
Postal area | 05150 Alor Setar, Kedah | ||
Locality | Kota Kinabalu, Sabah | ||
State | Pulau Pinang | ||
Natural Feature | [Can be left empty] | ||
Country | Malaysia | ||
Note: Table in this section summarizes address expectations for an average result for each type. Special formats that are prevalent in the market will be explored in the next section.
Results and official resources in Malaysia often return varying combinations of address components that are different from the minimum requirement. Here is how we can accurately rate the Address Accuracy despite those variances:
Result | Official Address |
Kapten Steamboat & Grill JB Lot 8-01, Jalan Tun Abdul Razak Susur 6, 80350 Taman Tasek, Johor, Malaysia | Lot 8-01, Jalan Tun Abdul Razak Susur 6, Taman Suria Muafakat, 80350 Johor Bahru, Johor, Malaysia |
Following the steps above we get:
Component | Result Address | Official Address | Required Address (Based on tables) | Checkbox Used |
Floor, Street Number & Name | Lot 8-01, Jalan Tun Abdul Razak Susur 6 | Lot 8-01, Jalan Tun Abdul Razak Susur 6 | Lot 8-01, Jalan Tun Abdul Razak Susur 6 | No Demotion |
Sub-location | Taman Tasek | Taman Suria Muafakat | Taman Suria Muafakat | Sub-Locality (Wrong) |
Postal Code | 80350 | 80350 | 80350 | No Demotion |
Locality | [Not returned] | Johor Bahru | Johor Bahru | Locality (Missing) |
State/ Federal Territory | Johore | Johor | Johor | No Demotion |
Country | Malaysia | Malaysia | [Optional for MY] | No Demotion |
Final Rating: Incorrect – Sub-Locality, Locality
In practice, [Damansara] in address is referring to Sub-district [Mukim Damansara] and it cannot be represented as [Ara Damansara], [Damansara Utama], [Damansara Perdana] or any other [Sub-location] with ‘Damansara’ string. Kindly use government tools to identify the border for sub-district.
Result | Official Address |
CITTA Mall 1, Jalan PJU 1A/1, 47620 Damansara, Selangor, Malaysia | No.1, Jalan PJU 1A/48, Ara Damansara, 47301 Petaling Jaya, Selangor, Malaysia |
Following the steps above we get:
Component | Result Address | Official Address | Required Address (Based on tables) | Checkbox Used |
Street Number & Name | 1, Jalan PJU 1A/1 | No.1, Jalan PJU 1A/48 | No.1, Jalan PJU 1A/48 | Street Name (Wrong) |
Sub-location | [Not returned] | Ara Damansara | Ara Damansara | Sub-Locality (Missing) |
Postal Code | 47620 | 47301 | 47301 | Postal Code (Wrong) |
Locality | [Not returned] | Petaling Jaya | Petaling Jaya | Locality (Missing) |
Sub-district | Damansara | [Not Listed] | [Optional] | No Demotion * (‘Damansara’ refers to extra component ‘Mukim Damansara’ (Sub-district) and result POI is within its border hence no demotion) |
State/ Federal Territory | Selangor | Selangor | Selangor | No Demotion |
Country | Malaysia | Malaysia | [Optional for MY] | No Demotion |
* Returning correct but non-essential components [Sub-district] or [District] will NOT be reported unless they are wrong.
Final rating: Incorrect – Street name, Sub-Locality, Postal code, Locality
Result | Official Address |
Petron Jalan 1/76, Desa Pandan, 55100 Ampang, KL, Malaysia | Lot Pt 1850, Desa Pandan, 55100 Kuala Lumpur, Wilayah Persekutuan Malaysia |
Following the steps above we get:
Component | Result Address | Official Address | Required Address (Based on tables) | Checkbox Used |
Street Number | [Not returned] | Lot Pt 1850 | Lot Pt 1850 | Street Number (Missing) |
Street Name | Jalan 1/76 | [Not Listed] | [Optional] | No Demotion. Although official address does not include a street name, the result street name does provide direct access to the business. |
Sub-location | Desa Pandan | Desa Pandan | Desa Pandan | No Demotion |
Postal Code | 55100 | 55100 | 55100 | No Demotion |
Locality | Ampang | n/a | n/a | Locality (Wrong)* |
State/ Federal Territory | KL | Kuala Lumpur, Wilayah Persekutuan | Kuala Lumpur | No Demotion |
Country | Malaysia | Malaysia | [Optional for MY] | No Demotion |
* In above example, Ampang is a [Sub-district] and also a [Locality], therefore treat Ampang as a [Locality]. Since this address is not located in Ampang (locality), we should select [Incorrect – Locality].
Final rating: Incorrect – Street number, Locality
[Sub-location] results often do not have a classification (N/A) as they are considered as address type results.
However, there are exceptions. Here are some examples and how to rate them.
Result | Rating & Explanation | |||
Name | Taman Cheras Jaya, Cheras | Name Accuracy | Partially Correct (Wrong classification) | |
Classification | Park | |||
Address | Selangor, Malaysia | Address Accuracy | Correct | |
No demotion in the condition that sub-location (Taman Cheras Jaya) and locality (Cheras) are shown in Result Name. | ||||
Note: If there is no classification or the classification is correct [e.g. Real Estate/Property], result should be treated as an address type and hence Name Accuracy be rated as [n/a].
In Malaysia, it is common to see abbreviations and acronyms among POI names. Here are the examples and rating rules:
Abbreviations
Result Abbreviation | Original words | Rating and Explanation |
Jln. / Jln / Jl. / Jl | Jalan | Name Accuracy Correct |
Kg. / KG. | Kampung | •Rate normally if the abbreviation is commonly used. •A dot ‘.’ after the abbreviation is not mandatory as long as it is recognizable. |
Tmn. / TMN | Taman | |
Sek. Men. Keb. | Sekolah Menengah Kebangsaan | |
Sdn. Bhd. | Sendirian Berhad | |
Hj. | Sate Kajang Haji Samuri |
Acronyms
Acronyms have to be fully capitalised or aligned with official
Result acronyms | Original phrases | Rating | |
SMK | Sekolah Menengah Kebangsaan | Name Accuracy | Correct |
Smk / smk | Partially Correct | ||
JPJ | Jabatan Pengangkutan Jalan | Correct | |
Jpj / jpj | Partially Correct | ||
Addresses in [Federal Territories] (Kuala Lumpur, Putrajaya, and Labuan) should contain the federal territory name only once and there are no localities within the federal territories. Shortened names and recognized abbreviations of the federal territories can be accepted with no demotion i.e. [KL], [Kuala Lumpur], [W.P. Kuala Lumpur], etc.
This is the expected format for addresses in federal territory:
[Street Number], [Street Name]
[Sub-location] (If it exists)
[Postal Code] [Federal Territory]
[Country]
Example:
Mont Kiara,
50480 Kuala Lumpur,
Malaysia.
Please see the below approach for each type of scenario:
Result address | Expected address | Rating and Explanation | |
Kuala Lumpur, KL, Malaysia | Kuala Lumpur, Malaysia | Address Accuracy | Incorrect – Other Issue |
Extra federal territory name being shown in result address. We mark duplication of components as Incorrect – Other issue. | |||
Wangsa Maju, KL, Malaysia | Wangsa Maju, Kuala Lumpur, Malaysia | Address Accuracy | Correct |
No demotion when showing the abbreviation of Kuala Lumpur as ‘KL’. | |||
22, Jalan Kiara, 50480 Taman Tasek, KL, Malaysia | 22, Jalan Kiara, Mont Kiara, 50480 Kuala Lumpur, Malaysia | Address Accuracy | Incorrect – Sub-Locality |
Incorrect sub-location ‘Taman Tasek’ being shown in result address and missing sub-location ‘Mont Kiara’. No demotion when showing as ‘KL’. | |||
Jalan Perubatan 1, Kuala Lumpur, Selangor, Malaysia | Jalan Perubatan 1, Pandan Indah, Kuala Lumpur, Malaysia | Address Accuracy | Incorrect –Sub-Locality, Region/ State |
Missing sub-location ‘Pandan Indah’. Additional incorrect state ‘Selangor’ being shown in result address. | |||
Addresses in [Melaka city] should contain only one [Melaka] as the city or state, as we only accept either the city or state to be returned. If multiple [Malacca/ Melaka] are showing, select Incorrect – Other Issue.
This does not apply to [Locality], [Sub-district] and [District] results.
Result address | Rating | |
Jalan Hang Jebat, 75200 Malacca, Malaysia | Address Accuracy | Correct |
Jalan Hang Jebat, 75200 Malacca, Malacca, Malaysia | Address Accuracy | Incorrect – Other Issue |
Addresses in [Georgetown city] should always contain [Georgetown/ George Town] as the [Locality] component even if official does not show it.
Result address Rating
126, Jalan Burma 10050 Georgetown, Penang Malaysia | Address Accuracy | Correct |
126, Jalan Burma 10050 Penang Malaysia | Address Accuracy | Incorrect – Locality (Missing Georgetown) |
For addresses of [POI/ Business within a larger entity], there is a slight difference from the typical [POI/Business] address. For one, additional component [Unit number] will be essential if it is listed in the official websites. Additionally, [Building name] can be a mandatory component depending on the circumstance.
Official Address | Result Address | Rating and Explanation | |
Tesco Paradigm Lot LG01, The Paradigm Mall, No. 1, Jalan SS7/26A, Kelana Jaya, 47301 Petaling Jaya, Selangor | Tesco Paradigm Lot LG01, The Paradigm Mall, Kelana Jaya, 47301 Petaling Jaya, Selangor | Address Accuracy | Correct |
An associated entity can have the name of the larger entity in the address and be rated Correct. | |||
Tesco Paradigm Lot LG01, No. 1, Jalan SS7/26A, Kelana Jaya, 47301 Petaling Jaya, Selangor | Address Accuracy | Correct | |
Building name is optional if official address has a street number. | |||
Tesco Paradigm Kelana Jaya, 47301 Petaling Jaya, | Address Accuracy | Incorrect – Unit/Apt, Street number, Street name | |
Selangor | [Unit/Apt], [Street number] and [Street name] are missing. Do not demote for missing [Building name], official address has a street number hence Building name is an optional component. |
If result address is missing both [Building name] and [Street name] for address that does not have Street number, Incorrect – Other issue, Street name have to be checked.
Official Address | Result Address | Rating and Explanation | |
Starbucks Coffee T-073, Mid Valley Megamall, Lingkaran Syed Putra, Mid Valley City, 59200 Kuala Lumpur, Malaysia | Starbucks Coffee T-073, Mid Valley Megamall, Mid Valley City, 59200 Kuala Lumpur, Malaysia | Address Accuracy | Correct |
An associated entity can have the name of the larger entity in the address and be rated Correct. Street address (Street number and name) is no longer required if result address contains larger entity’s name. | |||
Starbucks Coffee Lingkaran Syed Putra, Mid Valley City, 59200 Kuala Lumpur, Malaysia | Address Accuracy | Incorrect – Unit/Apt, Other Issue | |
Official address does not have [Street number] hence [Building name] becomes mandatory component. Result address is missing Unit number (T-073) and Building name (Mid Valley Megamall). | |||
Starbucks Coffee Mid Valley City, 59200 Kuala Lumpur, Malaysia | Address Accuracy | Incorrect – Unit/Apt, Other Issue, Street name | |
[Building name] and [Street name] are not showing in result address therefore select Incorrect – Other Issue, Street name along with Unit/ Apt (missing). | |||
Minority of official addresses are different from standard address format, below are the different scenarios and how to rate them:
3.2.5.1 Street number + Sub-location
This scenario usually occurs in rural areas where roads are unnamed. We should rate according to the official address.
Result | Official/ Expected Address | Rating and Explanation | |
1Malaysia Clinic 17600 Jeli | PT 8646, Kg. Lakota 17600 Jeli | Address Accuracy | Incorrect – Street number, SubLocality |
Kelantan, Malaysia | Kelantan | Official address does not have a street name. Correct rating should be missing Street number (PT 8646) and missing Sub-location (Kg. Lakota). |
3.2.5.2 Street number + Sub-district
This scenario usually occurs in certain POIs (e.g. Petrol station) in rural areas where no [Street Name] or [Sublocation] are showing in the official address. [Sub-district] will thus become a mandatory component in this case. However, [District] component remains optional even if official address contains it.
Result | Official/ Expected Address | Rating and Explanation | |
Petron Parit Raja 2 86400 Batu Pahat, Johor | Lot 366, Mukim Sri Gading, Dearah Batu Pahat, 86400 Batu Pahat Johor | Address Accuracy | Incorrect – Street number, SubLocality |
Official address does not have a street name or a sublocation. Correct rating should be missing street number (PT 8646) and missing sub-district (Mukim Sri Gading). | |||
Petron Bandar Menjalara LOT 44668, Bandar Manjalara, 52100 Kuala Lumpur | LOT 44668, Bandar Manjalara, Mukim Batu, 52100 Kuala Lumpur | Address Accuracy | Correct |
[Sub-district] is not a mandatory component anymore if the official address contains [Street name] or [Sublocation]. | |||
Petron Bandar Menjalara LOT 44668, Mukim Batu, 52100 Kuala Lumpur | LOT 44668, Bandar Manjalara, Mukim Batu, 52100 Kuala Lumpur | Address Accuracy | Incorrect – Sub-Locality |
Same as above, in this case result address is required to return Sub-location (Bandar Manjalara) even if Subdistrict is showing. | |||
Sometimes, [Sub-district] and [District] will appear in result address and they usually forgo admin type (e.g. Mukim/ Pekan/ Daerah), no demotion is needed if the admin type is not showing. To illustrate, here are a few [Sub-district] and [District] that result address might carry:
Sub-district | District | State |
Mukim Pulai | Daerah Johor Bahru | Johor |
Mukim Damansara | Daerah Petaling | Selangor |
Mukim Batu | Daerah Gombak | Selangor |
Below is a list of features that will follow POIs Without an Expected Address rule. This rule warrants the listed features with minimum address expectation: [Locality + State] or [Federal Territory] (or Locality/Federal Territory for AC). This list is not exhaustive and will be updated over time.
Half ‘n’ Half rule in Malaysia
Result
1, Jalan BBP 1,
Taman Batu Berendam Putra, 75350 Melaka, Malaysia
Perfect (green area) ->The pin is on correct portion of the rooftop Approximate (yellow area) -> The pin is within the boundaries of the feature Next door (purple area) -> The pin is on the immediate property next to the intended feature
To determine Approximate boundary, apply Half ‘n’ Half rule: Divide the space between the closest public street or next building in half to create a line. In this case [Jalan BBP 1] is the closest public street, the Approximate boundary should not go beyond half of this street.
Illegal U-turns
Every driver is reminded that making a U-turn at any road intersection, road junction or opening in a road divider that does not display the U-turn sign is considered committing offence under Traffic Rules 166/59 ( Rule 13 ), this includes toll gate/ tunnel/ school.
Safe/ Legal Crossing
In conjunction with Malaysia Road Transport Act 1987 Section 75 and other safety considerations, any pedestrian crossing meeting ALL the conditions below will be considered pedestrian friendly, when all possible danger/obstacles have been considered:
